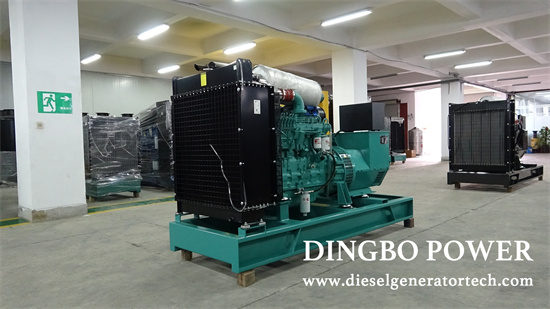

Diesel Generator Set Safety Protection Shutdown

Safety Protection Shutdown Types

When a diesel generator set shuts down due to safety protection, the controller panel displays the shutdown protection type. The protection types include:

· Engine overspeed shutdown protection

· Extremely low oil pressure shutdown protection

· High water temperature shutdown protection

· Overcurrent and undervoltage protection

· Overload, short circuit, and phase loss protection

Control Panel Operation Diagram Explanation

The entire control panel consists of three parts: an LCD screen for displaying measurement parameters and operating status, public warning/fault indicator lights, and operation keys with control mode selection buttons. The generator set's automatic start controller features an updated design, focusing on customer needs and enhancing performance to fully meet the automatic control requirements of generator users or professional assembly plants for different types of generator sets.

Key Functions

Page Button

· Page Information Display: Press this button to cycle through displayed information.

· Parameter Settings Access: Press and hold for 2 seconds to enter or exit the parameter settings menu.

Mute Button/Light Test

· Mute Function: When the controller triggers a warning or fault, the alarm buzzer sounds. Press this button to stop the buzzer; press again to cancel mute. If the fault persists, the buzzer will resume. A mute symbol appears on the LCD when mute is active.

· Light Test: Press and hold for 2 seconds to activate all indicator lights simultaneously.

Auto Mode Button/Indicator/Parameter Increase "+" Key

· Auto Mode Setting: Used to set the automatic operation mode. The LED indicator above the button lights up when the controller is in auto mode. The generator starts/stops based on the "remote start signal" status.

· Parameter Settings: In parameter setting mode, this key increases values or moves selection downward.

Manual Mode Button/Indicator/Parameter Decrease "-" Key

· Manual Mode Setting: Used to set the manual operation mode. The LED indicator above the button lights up when the controller is in manual mode. The generator starts/stops via the "START" and "STOP" keys.

· Parameter Settings: In parameter setting mode, this key decreases values or moves selection upward.

Test Mode Button/Indicator/Parameter Confirm "√" Key

· Test Mode Setting: Used to set the test operation mode. The LED indicator above the button lights up when in test mode. The controller simulates a valid "remote start signal" to start the generator.

· Parameter Settings: In parameter setting mode, this key enters submenus or confirms modifications.

Start Button/Indicator/Parameter Up Key

· Manual Start: Used to manually start the generator. When in manual mode, press this key to start the generator.

· Parameter Settings: In parameter setting mode, this key returns to the previous menu.

Stop/Reset Button/Indicator/Parameter Shift Key

· Manual Stop: Used to manually stop the generator. In manual mode, press and hold for over 2 seconds to stop the unit.

· Fault Reset: Briefly press this key to lift fault shutdown lock when a fault is present.

· Mode Switch: Regardless of the current mode, press and hold for over 2 seconds to stop the generator and automatically switch to manual mode.

· Parameter Settings: In parameter setting mode, this key shifts the editable digit.

Switch On/Off Button

· In manual mode, used to switch the generator power supply on or off.

Indicator Lights

· Fault Indicator Light: Illuminates when the controller detects a shutdown fault.

· Warning Indicator Light: Illuminates when the controller triggers a warning.

· Generator Normal Indicator Light: Illuminates when generator voltage and frequency reach rated levels for load operation.

· Generator Switch-On Indicator Light: Illuminates when the generator switch is closed (power supply active) or when switch-on fails.
