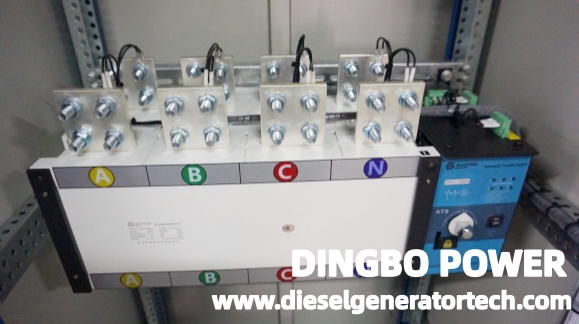

A generator transfer switch is essentially an electrical device.

A generator transfer switch is essentially an electrical device that keeps utility power and generator power separate. Its main purpose is to ensure that only one power source (utility or generator) supplies your electrical load at a time.

Are you often troubled by the non-seamless operation of standby diesel generators during power outages?

With a high-quality generator transfer switch, you won’t need manual operation. Installing a standby or prime diesel generator is essential to ensure a reliable backup power supply in case of grid failure. However, it should be noted that your standby generator is only part of the power system; it needs to know when to start to provide an uninterrupted power flow. This is why standby diesel generator sets must be equipped with an ATS (Auto Transfer Switch). A generator ATS automatically switches loads between different power sources to ensure continuous operation. It is mainly a power switching device that constantly monitors your power supply status.

What is a generator transfer switch?

A generator transfer switch is essentially an electrical device that keeps utility power and generator power separate. Its main purpose is to ensure that only one power source (utility or generator) supplies your electrical load at a time.

When a power outage or voltage dip occurs, the switch automatically transfers the load circuit to your standby generator, which supplies power until the grid is restored and operational.

In short, a generator transfer switch allows you to conveniently switch power to your standby generator manually or automatically during a power outage.

Structure & Functional Breakdown of the Innovative ATS

In summary, a high-performance generator transfer switch is not only a key component to ensure uninterrupted power supply but also an important guarantee for electrical safety.

Types of generator transfer switches

There are two main types of transfer switches:

（1）Manual transfer switch

  As the name suggests, a manual transfer switch requires manual operation to switch power from the main grid to the generator.

Its disadvantage is that it cannot automatically handle high-voltage loads. Although cost-effective compared with automatic transfer switches, it requires manual intervention during power outages.

（2）Automatic transfer switch

In contrast, an automatic transfer switch can automatically detect power outages. Once the utility power fails, the system automatically switches power from the main grid to the generator when the generator starts.

How does a generator transfer switch work?

When using a generator transfer switch, the connections to the load remain unchanged; the switch only toggles between utility power and the generator. This prevents the two power sources from being connected simultaneously.

A manual generator transfer switch requires you to physically turn the switch or handle between the power sources and start the generator yourself. An automatic generator transfer switch switches automatically and starts/stops the generator as needed.

Why do you need a transfer switch for a standby generator?

Ensure safety

A generator transfer switch is the safe way to connect a generator directly to your electrical system.

Easy operation

It is not only the safest but also the most convenient way to connect a generator.

In emergencies like power outages, powering equipment with extension cords is highly inconvenient. A transfer switch uses your existing wiring to let the generator supply power quickly and easily to any appliance.

Support hardwired equipment

Some equipment cannot be connected to a standby generator via extension cords; a transfer switch can power these devices easily. It also supplies backup power to various hardwired appliances and equipment on production lines or in offices.

Prevent backfeeding

A transfer switch blocks utility power from flowing back into the generator.

Without a transfer switch, the generator would need multiple extension cords to power equipment, posing serious risks: when utility power is restored, parallel connection of the two sources causes a current surge that damages wiring, endangers people, and may trigger fires.

Support hardwired equipment

Some equipment cannot be connected to a standby generator via extension cords; a transfer switch can power these devices easily. It also supplies backup power to various hardwired appliances and equipment on production lines or in offices.

Prevent backfeeding

A transfer switch blocks utility power from flowing back into the generator.

Without a transfer switch, the generator would need multiple extension cords to power equipment, posing serious risks: when utility power is restored, parallel connection of the two sources causes a current surge that damages wiring, endangers people, and may trigger fires.

In summary, a high-performance generator transfer switch is not only a key component to ensure uninterrupted power supply but also an important guarantee for electrical safety.
