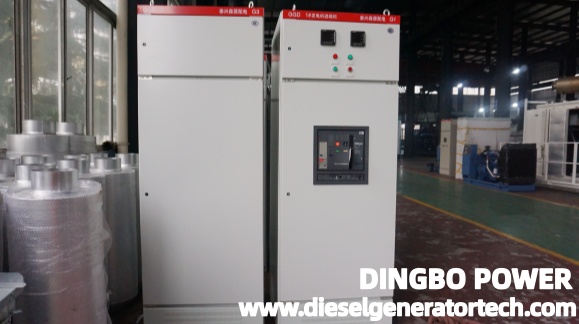

A Comprehensive Guide to Low-voltage Distribution Cabinets for Generator Sets: Every Component is a guardian of power supply safety

The low-voltage distribution cabinet is an indispensable core supporting facility for generator sets. It undertakes power distribution, circuit protection, operation monitoring and automatic power switching tasks during the power generation process. Every component inside works as a reliable guardian to ensure the generator set runs stably, safely and continuously under various working conditions. Below is a concise introduction to all key parts.

1. Main Control Components

Air Circuit Breaker (ACB)

Serves as the main incoming switch for low-voltage distribution cabinets. Rated current: 630A~6300A. Equipped with intelligent release, providing overload, short-circuit, undervoltage and phase loss protection. Supports manual/electric switching and remote monitoring, acting as the primary safety barrier for power distribution.

Molded Case Circuit Breaker (MCCB)

Used for branch outgoing circuits. Rated current: 100A~800A. Offers overload, short-circuit, undervoltage and leakage protection. Compact, durable and easy to maintain. It isolates faulty branches without affecting the whole system.

Miniature Circuit Breaker (MCB)

Commonly known as air switch. Rated current: 6A~63A. Rail-mounted with small size, applied to low-current terminal circuits such as lighting and instruments for overload and short-circuit protection.

2. Automatic Switching Components

Automatic Transfer Switch (ATS)

Composed of switch body and controller, divided into two types:

· PC-class ATS: Dedicated for power switching only, no overload protection. Features strong resistance to surge current, suitable for precision equipment like communication and medical devices.

· CB-class ATS: Assembled with two circuit breakers, with overload and short-circuit protection. Applied to ordinary lighting and low-power loads.

3. Control & Actuating Components

· Contactor (KM): Electromagnetic switch for remote and frequent circuit on-off control, with undervoltage protection.

· Auxiliary Relay (KA): Amplifies control signals and expands contact points.

· Thermal Relay (FR): Provides overload protection for motors by cutting off circuits under abnormal heating.

· Time Relay (KT): Enables delay control to avoid impact damage from instantaneous start-stop.

4. Monitoring & Metering Components

· Multi-function Power Meter: Displays voltage, current, frequency, power, electric energy and other operating data in real time.

· Current Transformer (CT): Converts high current into standard low current for measurement and protection.

· Voltage Transformer (PT): Converts high voltage into standard low voltage for measurement and protection.

· Indicator Lights & Buttons: Indicate circuit status; buttons realize manual operation.

5. Basic Load-Bearing Components

· Copper Busbar: The main power transmission channel, collecting and distributing electric energy with high conductivity and large current-carrying capacity.

· Insulators & Insulating Sleeves: Isolate live parts to prevent electric leakage, short circuit and accidental contact.

· Terminal Blocks: Standardize cable wiring for convenient maintenance and avoid circuit faults caused by messy lines.

Summary

These components form an integrated system of control, switching, protection, monitoring and power transmission, guaranteeing the stable and safe operation of generator sets.
