Checking Exhaust and Electrical System of Diesel Engine

Mar. 01, 2018

This is the final part of checking and adjusting Deutz 226B series diesel engine for delivery beginning. It mainly includes checking exhaust, turbocharging and inter-cooling system and electrical system.

3. 9. 2 Exhaust



The three - cylinder or four - cylinder diesel engine adopts unitary exhaust manifold, and the six - cylinder engine adopts inserted exhaust manifold which is made up of two parts ( every part for three cylinders) and sealed with narrow width ring. The joint between exhaust manifold and cylinder head is sealed with stainless steel gasket, the convex surface of which should face to the cylinder head.  The torque for tightening nut is 45 t 5Nm.



The exhaust resistance of diesel engine should be as small as possible; therefore the exhaust manifold must have sufficient sufficient or area and with bends as few as possible, because the performance of engine will be influenced obviously if the exhaust resistance exceeds a certain value. The sum of the resistances of exhaust main and muffler should not be more than 7.5kPa for natural aspirated engine, and not he more than 5kPa for turbocharged engine.



3. 9. 3 Turbocharging and inter - cooling system


Turbocharger: Both turbocharging models and the turbocharging inter - cooling models of the 226B series engine employ the radial flow exhaust turbocharger. See the accessory list for the those models.  The oil lubricating and cooling the turbocharger flows into the turbocharger from the main oil passage then directly back into the crankcase.



The exhaust turbocharger is a kind of running mechanism at its high speed and high temperature. The immediate halt when the engine is running at high speed and with large load is strictly forbidden.  The right way is to decrease the load and the speed gradually and let the engine run idly for another 5 -10 minute so as to avoid any damage to the turbocharger bearing. After the turbocharger is disassembled, some clean engine oil should be put at the oil inlet during the mounting process.



Charging air cooler (intercooler)



The temperature will go up after the air goes through the turbocharger and gets pressured. The intercooler of the 226B turbocharging inter - cooling engine features: air - air cooling. Is used to lower the pressured intake air temperature.



Air - air cooling intercooler ( delivered conforming with the contract) , generally speaking, is assembled together with the circulating water radiator, cooled by fan. The intercooler be placed at the hack of the radiator. The intercooler could also be placed in line with the radiator, determined by the overall fitting mechanism.



The maximum acceptable flow resistance ( supercharger to intercooler/ intercooler to engines) then the pressured air from the supercharger is passing through the pressure pipe should be less than 2kPa. The flow resistance while going through the intercooler should be less than 5.0 - 5. 5 kPa.  So the limit value of the total resistance when the pressured air is passing through pressure pipe and intercooler is 7. 0 - 7. 5 ( kPa) ,



3. 10 Electrical system


The system is consisted of starter, chargeable generator, control instrument and storage battery. The service voltage is 24V or 12V, subject to the choice of the customers.



Starter: the starter is a DC motor controlled by electromagnetism. Without specific requirement, the rated power is 4kW or 6kW at the working voltage of 24V and 2. 7kW or 4kW at the working voltage of 12V.

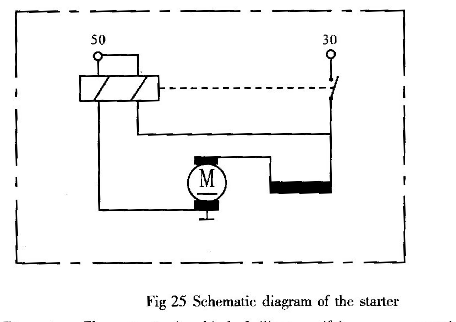

schematic diagram of the starter



Generator: The generator is a kind of silicon rectifying generator equipped with transistor adjuster. The rated voltage is 28V or 14V. The generator is connected parallelly with the storage battery.  The generator is self - excited when working.

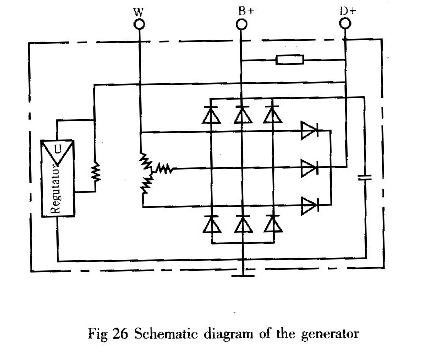

schematic diagram of the generator



Storage battery (generally self-prepared by the customers)



Storage battery capacity



Cylinder quantity

Starter voltage V

Storage battery capacity Ah

34

24

66

34

12

88

6

24

88

6

12

110

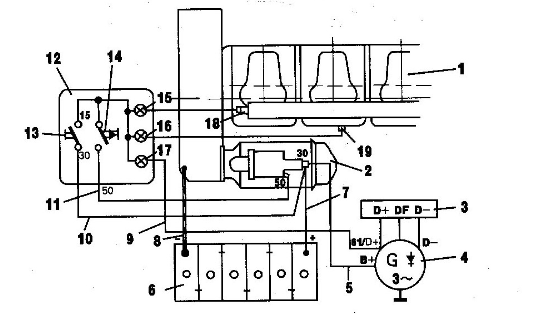

Schematic diagram of the electric circuit connection


schematic diagram of the electric circuit connection


1. Diesel engine button               11. connecting wire from starting

2. Starter                          12. meter cover

3. Adjustor of the generator           13. ignition lock

4. AC generator                     14. starting button

5. The connecting wire from the AC generator to starter  15. temperature warning light

6. Storage battery                   16. oil pressure warning light

7. The anode connecting wire to the starter 17. charging indicator light

8. Earth wire                         18. temperature sensor

9. Connecting wire from starter to charging indicator 19. oil pressure sensor

10. Connecting wire from starter to ignition lock

Flame preheating unit



Flame preheating unit ( OPT) :the unit is a cold - starting auxiliary equipment used in cold weather and is composed by temperature sensor, solenoid valve,flame preheating plug, electronic control device and preheating indicator fitted to water outlet pipe ( principle diagram  shown in fig27) . The fuel enters preheating plug from the low pressure fuel delivery pipe and is  ignited by electric heating ,and the flame enters air inlet pipe and heats the air . The process is  perform automatically by control system. The unit controls automatically the glowing time and flame preheating time of the preheating plug according to the ambient temperature. The drive can start the engine after the preheating indicator give out signal.

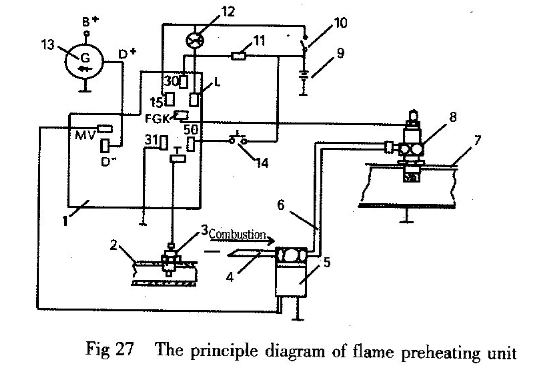

the principle diagram of flame preheating unit



1. Electric control unit A24  2. cooling water pipe of the engine  3. temperature sensor

4. Delivery pipe to high-pressure pump   5. solenoicd valve  6. fuel pipe

7. Air inlet pipe  8. Preheating plug R3 * 9.24 V battery  10. electric key

11. Fuse 25A  12. Preheating indicator 112/29  13. generator   14. start button



3.11 main bolts tightening torque



No.

Name of bolt

specification

Tightening torque (Nm)

Maximum (Max) Minimum (Min)

1

Cylinder head bolt

M14-10.9

M14-12.9

Pre-tighten with a torque of 30Nm, turn 120°, then again turn 120°.

2

Main bearing bolt

M14-10.9

Pre-tighten with a torque of 70Nm, turn 90°.

3

Tightening nut of intake pipe and exhaust pipe

M10-10

45    50

4

Flywheel pipe

M16-10.9

285    295

5

Fastening boss of crankshaft boss

M16-10.9

M16-12.9

240          250

300          310

6

Fastening bolt of the pulley on the boss

M10-8.8

M10-10.9

M12-8.8

45           50

65           70

85           90

7

Fastening bolt of the dampener

M10-8.8

M10-10.9

45          50

65          70

8

Tightening bolt of the camshaft gear and the fastening bolt of camshaft gear and fuel injector pump gear

Durlok M8-12.9

M10*1.25-10.9

55         60

85         90

9

Fastening bolt of the mounting gear at the oil injector camshaft

M14*1.5

M18*1.5

85         100

100        110

10

Connecting rod bolt

M12*1.5-12.9

Pre-tighten with a torque of 30Nm, turn 60°

11

Fastening bolt of the flywheel housing and other fastening bolt and stud bolt

M12-12.9

M12-10.9

M10-12.9

M10-10.9

140       145

110       120

80        85

60        65

12

Fastening bolt of oil pan, hexagon cylinder-head bolt for bearing the oil

M8-8.8

M8-10.9

20        25

30         35

13

Fastening bolt of two stage balancing mechanism

M10-8.8

35        40

14

Fastening bolt of oil pump and the stud bolt with self-locking nut

Durlok M8-12.9

M8-8.8

30         40

20         25

15

Construction bolt of rocker arm support

M10-8.8

40          45

16

Adjusting nut of rocker arm

M9*1

20      25

17

Fastening bolt of cylinder head housing

M8-8.8

 10      15

18

Fastening support for tightening the oil injection pump delivery valve


33        37

19

Fastening bolt of high pressure fuel pipe

M12*1.5

M14*1.5

20       25

20       25

20

Fastening nut of oil injector

M8

10       15

21

Fastening bolt of hydraulic pimp

M10-10.9

M8-10.9

60       65

30        35

22

Fastening bolt of AC generator pulley

M14

35        40
