8KW Three Phase Electric Start Diesel Generator

Model:DB12000C

Type: Open type

Rated Power Output:8KW

Phase:Three Phase

Rated Voltage: 400V

Rated Frequency: 50Hz

Nosie Level: 85 dBA/7m

Starting type: Electric Start/Auto Start

For more types, please contact us.

Inquire Now Next Product Download Datasheet

1. Vertical single-cylinder, 4-stroke, forced air cooled engine delivers low emissions and stable performance.

2. The 100% copper-wound alternator stator with AVR (automatic voltage regulation) offers strong power, reliable excitation and convenient maintenance.

3.The reinforced steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.

4. The generator set has overload circuit breaker protection and low-oil shutdown protection.

5 Acoustic-optimized muffler can reduce the noise effectively.

Technical specifications:

Genset Model		DB12000C
Alternator	Excitation Type	AVR
	Prime Power	8.0KW
	Standby Power	8.5KW
	Rated Voltage	400V
	Rated Current	11.6A per phase
	Max. Current	12.3A per phase
	Frequency	50HZ
	Phase	Three Phase
	Power Factor (COSφ)	0.8
	Insulation Class	F
Engine	Engine Model	1100F
	Bore*Stroke	98x84mm
	Displacement	667cc
	Fuel Consumption	≤320g/kw.h
	Ignition Method	Compression Ignition
	Engine Type	Vertical, single cylinder, four strokes, air-cooled, direct injection
	Fuel Type	Diesel：0#(Summer)-10#(Winter)-35#(severe cold)
	Oil Capacity	1.7L
	Starting Type	Electric Start/Auto Start via ATS during Power Outage
Other	Fuel Tank Capacity	20L
	Battery Capacity	12V-32AH Maintenance-free Battery
	Noise Level	85dBA/7m
	Dimensions	790x580x890mm
	Net Weight	146kg

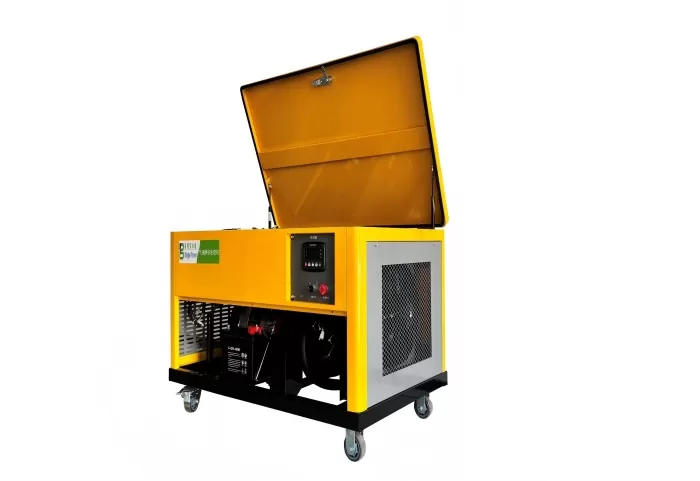

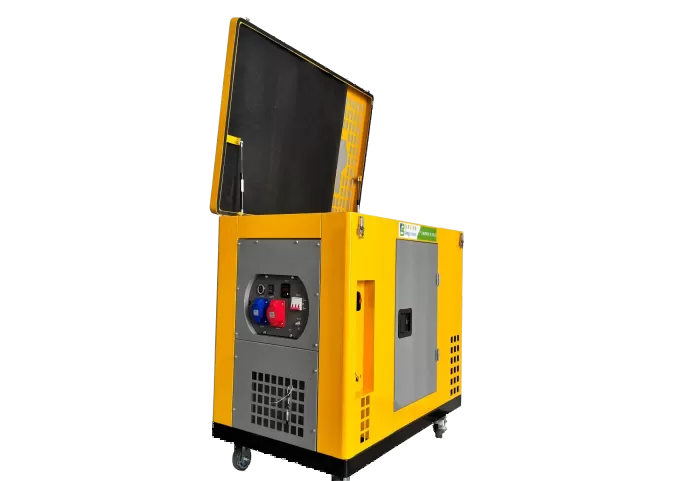

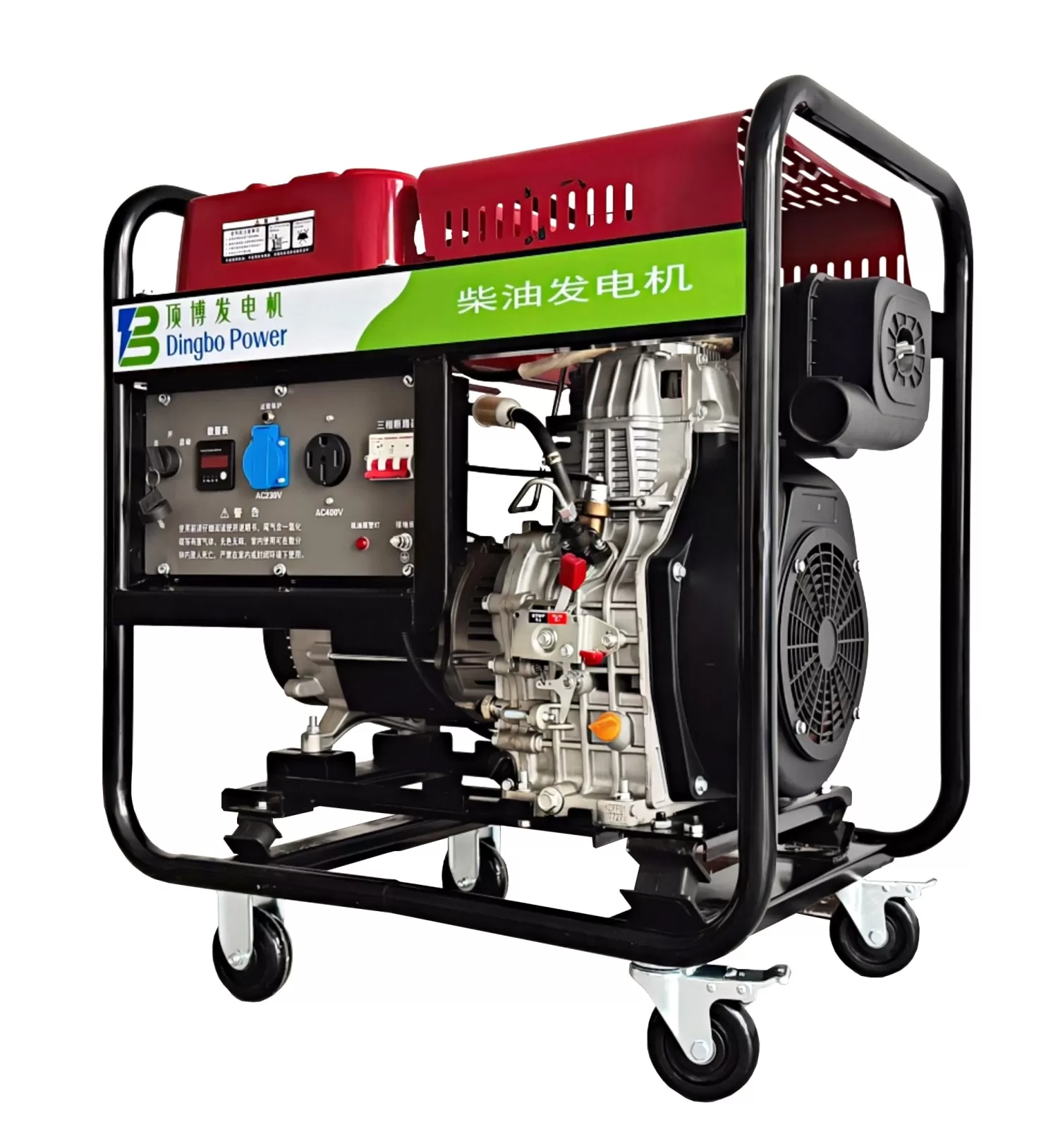

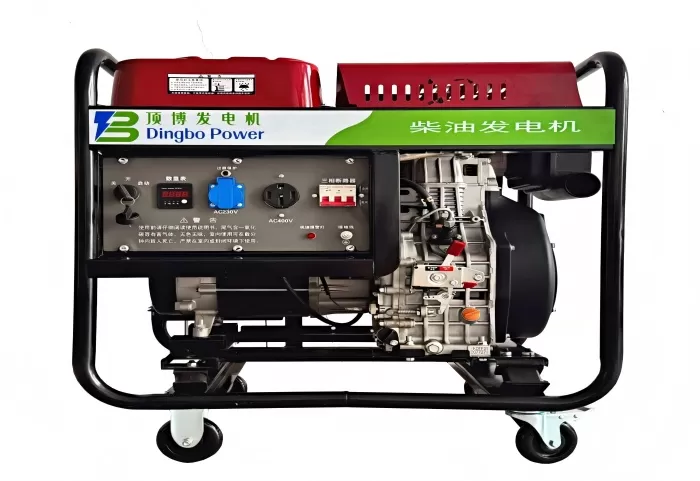

Dingbo Power open type portable three phase 8kW (10kVA) diesel generator, single-cylinder air-cooled 4-stroke diesel engine with electric start/auto start via ATS during power outage and 20L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.

Optional equipment: Automatic Transfer Switch

ATS automatic control panel include mains power indicator, generator operation indicator, auto-mode status indicator and fault alarm indicator.

When the ATS detects that the mains power is cut off, the generator set automatically self-starts and the ATS closes generator circuit (loads powered by generator). When ATS detects mains recovery, generator enters cooldown shutdown (30-60 min delay) and ATS opens generator circuit (loads transferred to mains).
