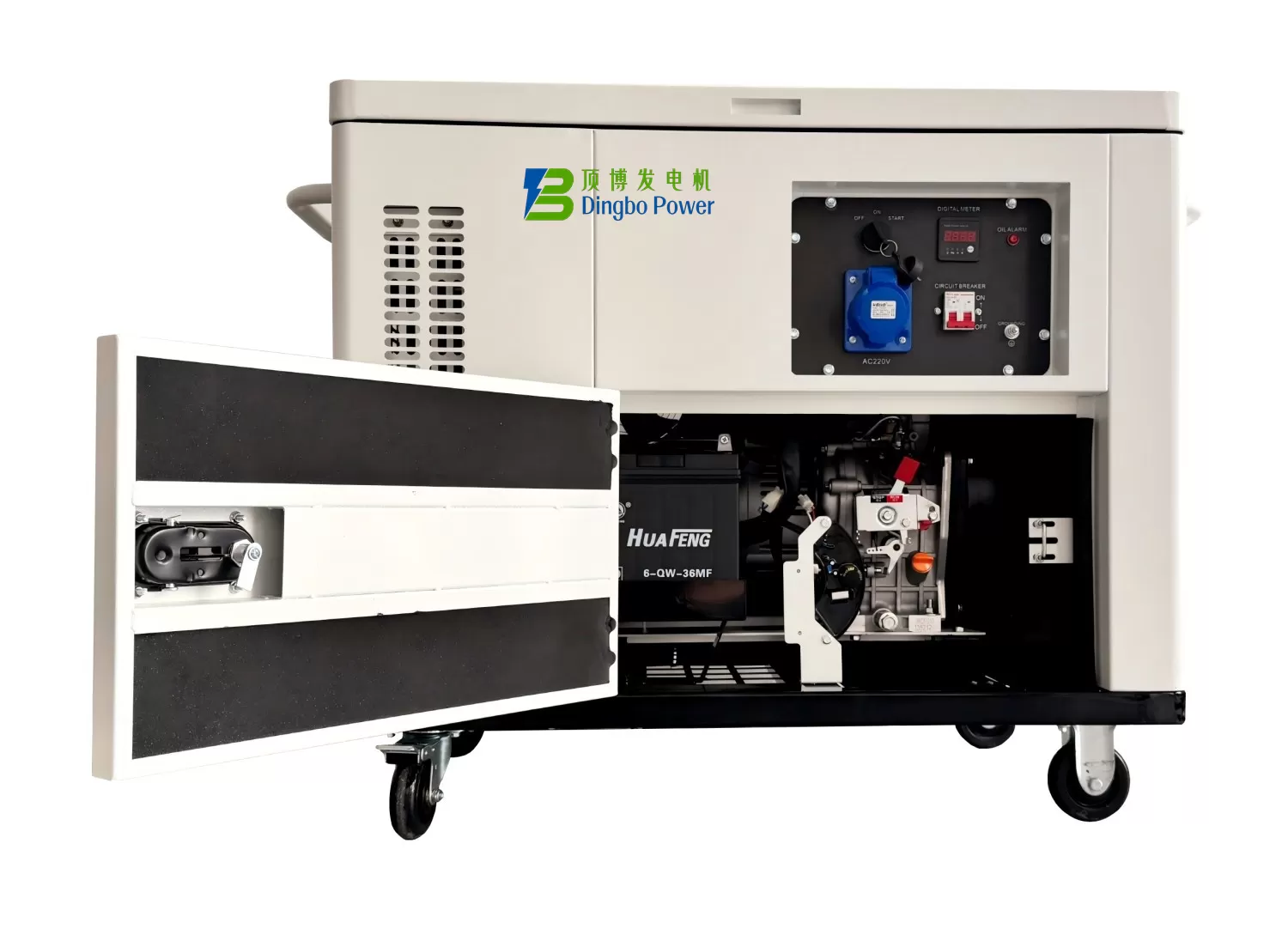

6KW Silent Single Phase Portable Diesel  Generator

6KW Silent Single Phase Portable Diesel Generator

1. Vertical single-cylinder, 4-stroke, forced air cooled engine  delivers low emissions and stable performance.

2. The 100% copper-wound alternator stator with AVR (automatic voltage regulation) offers strong power, reliable excitation and convenient maintenance.

3.The reinforced steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.

4.  The generator set has overload circuit breaker protection and low-oil shutdown protection.

5  Acoustic-optimized muffler can reduce the noise effectively.



Technical specifications:



Genset ModelDB7500CJ
AlternatorExcitation TypeAVR, Brush-type Self-excitation
Prime Power (KW)6
Standby Power (KW)6.5
Rated Voltage(V)220
Frequency (Hz)50
PhaseSingle Phase
Power Factor (COSφ)1
Insulation ClassF
EngineEngine ModelKD192FE
Bore*Stroke (MM)92*75
Displacement (CC)499
Engine Type1 Cylinder, air-cooled, direct injection
Fuel TypeDiesel
Oil Capacity (L)1.5
Starting TypeElectric Start
GensetFuel Tank (L)20
Noise Level (dBA/7m)78
Dimensions(MM)1000*650*735
Weight (KG)190



Dingbo Power silent type portable single phase 6kW (8kVA) diesel generator, single-cylinder air-cooled 4-stroke diesel engine with electric start and 20L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.
