Model: DB10000C
Type: Open type
Rated Power Output: 6KW
Phase: Single Phase
Rated Voltage: 220V
Rated Frequency: 50Hz
Nosie Level: 83 dBA/7m
Starting type: Manual Recoil/Electric Start
For more types, please contact us.
1. Vertical single-cylinder four-stroke forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator windings equipped with AVR (automatic voltage regulation) ensures strong power, reliable excitation and convenient maintenance.
3.The heavy-duty steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.
4. The generator set has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB10000C | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 6 | |
| Standby Power (KW) | 6.5 | |
| Rated Voltage(V) | 220 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase | |
| Power Factor (COSφ) | 1 | |
| Insulation Class | F | |
| Engine | Engine Model | KD192FE |
| Bore*Stroke (MM) | 92*75 | |
| Displacement (CC) | 499 | |
| Engine Type | 1 Cylinder, air-cooled, direct injection | |
| Fuel Type | Diesel | |
| Oil Capacity (L) | 1.5 | |
| Starting Type | Manual Recoil/Electric Start | |
| Genset | Fuel Tank (L) | 20 |
| Noise Level (dBA/7m) | 83 | |
| Dimensions (MM) | 780*520*685 | |
| Weight (KG) | 123 | |

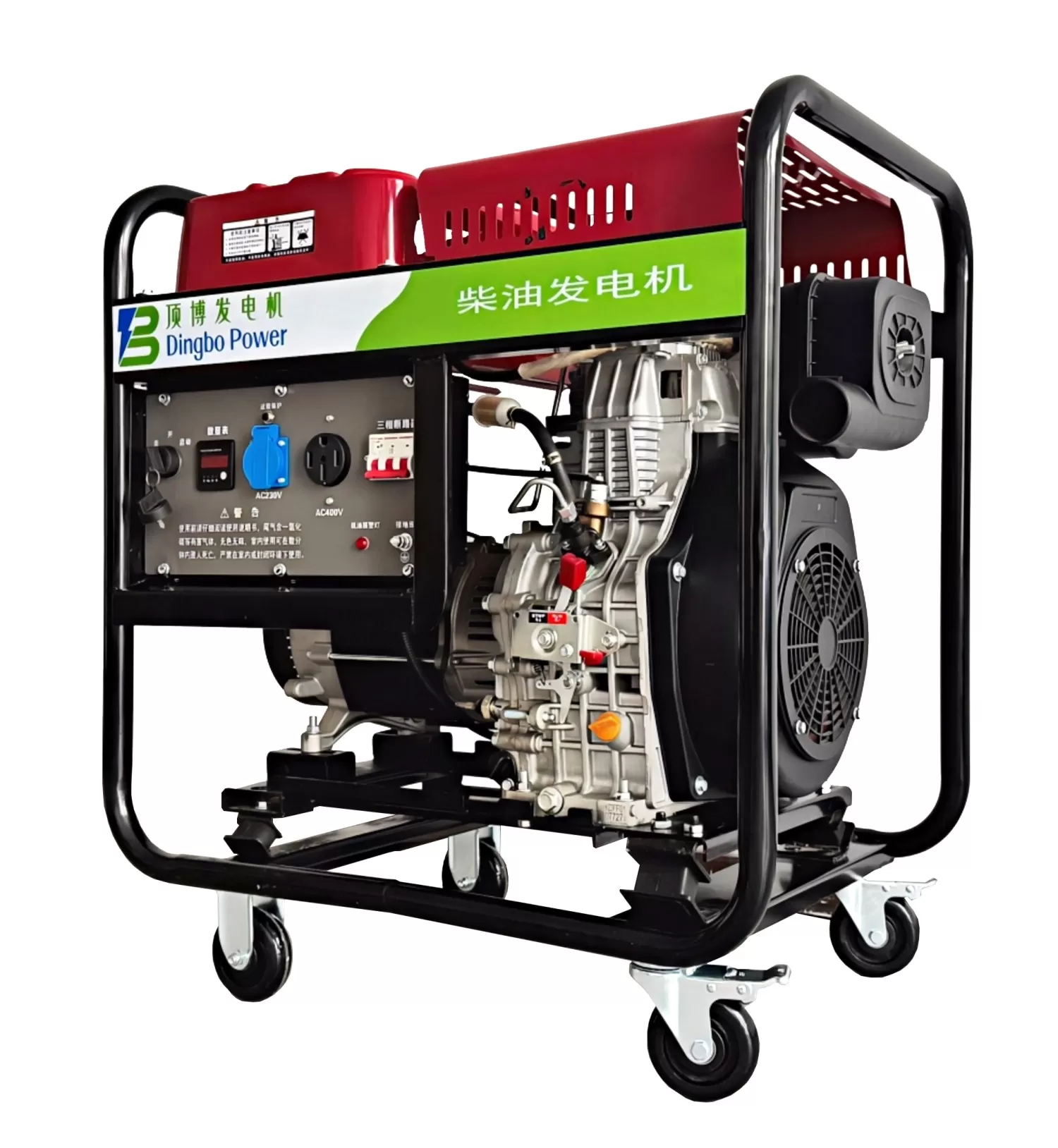

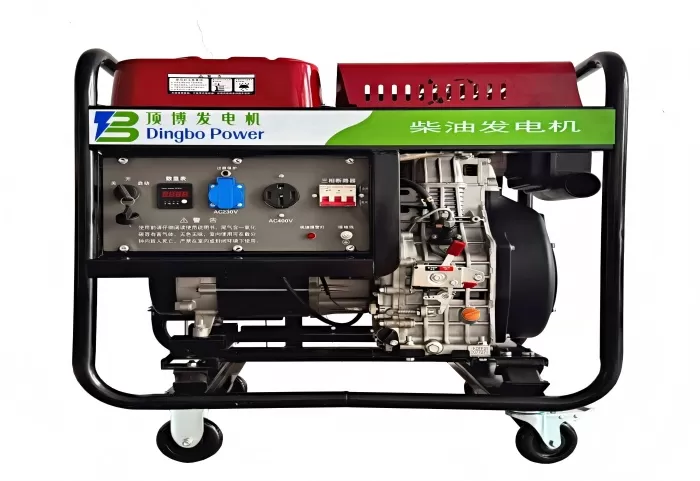

Dingbo Power open type portable single phase 6kW (8kVA) diesel generator, single-cylinder air-cooled 4-stroke diesel engine with manual recoil or electric start and 20L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.
