Model:DB18000CJ
Type: Silent type
Rated Power Output:15KW
Phase: Single Phase/Three Phase
Rated Voltage: 220/380V
Rated Frequency: 50Hz
Nosie Level: 78 dBA/7m
Starting type: Electric Start
For more types, please contact us.
Product features:
1. Utilizes a V-twin, four-stroke, forced air-cooled engine paired with a pure copper generator.
2. Features a soundproof generator enclosure, with imported acoustic foam inside the canopy. Noise level ≤78dB.
3. Equipped with a maintenance-free battery for rapid deployment and portability.
4. Output terminals on the control panel include anti-loosening sockets and binding posts to prevent accidental disconnections.
5. Integrated safety protection system with a large-capacity fuel tank. Capable of continuous 8-hour operation at rated power.
Technical specifications:
| Genset Model | DB18000CJ | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 15 | |
| Standby Power (KW) | 16 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase /Three Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | 2V95 |
| Bore*Stroke (MM) | 95*75 | |
| Displacement (CC) | 1247 | |
| Engine Type | 2 Cylinder, air-cooled, direct injection | |
| Fuel Type | Diesel | |
| Oil Capacity (L) | 3.2 | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank (L) | 30 |
| Noise Level (dBA/7m) | 78 | |
| Dimensions (MM) | 1255*755*982 | |
| Weight (KG) | 340 | |

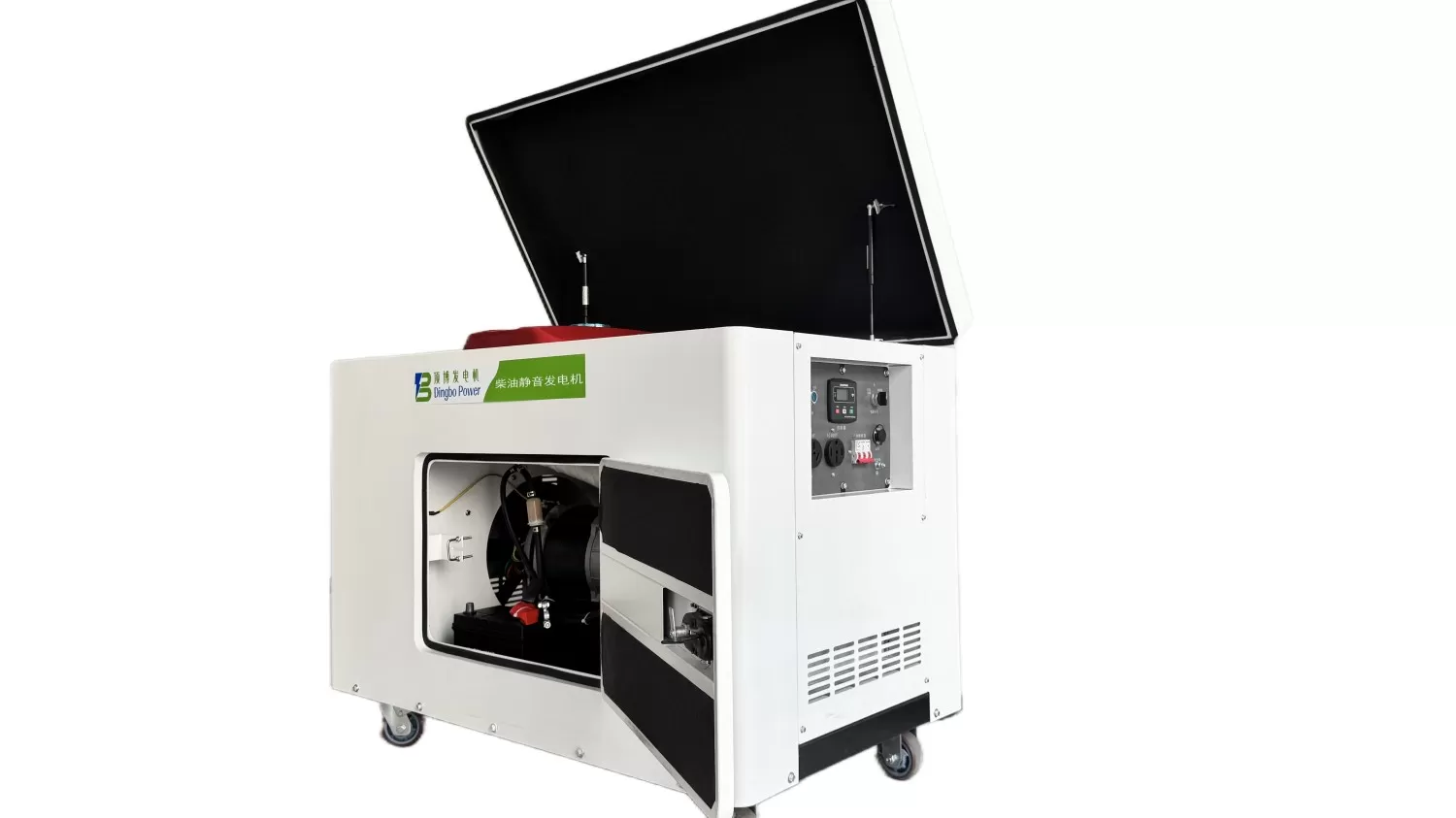

Dingbo Power silent type portable single/three phase 15kW (19kVA) diesel generator, 2-cylinder air-cooled 4-stroke diesel engine with electric start and 30L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.
