Model:DB15000C
Type: Open type
Rated Power Output:12KW
Phase: Single Phase/Three Phase
Rated Voltage: 220/380V
Rated Frequency: 50Hz
Nosie Level: 87 dBA/7m
Starting type: Electric Start
For more types, please contact us.
1. Vertical twin-cylinder, 4-stroke, forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper-wound alternator stator with AVR (automatic voltage regulation) offers strong power, reliable excitation and convenient maintenance.
3.The reinforced steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.
4. The generator set has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB15000C | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 12 | |
| Standby Power (KW) | 13 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase /Three Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | KD292 |
| Bore*Stroke (MM) | 92*75 | |
| Displacement (CC) | 997 | |
| Engine Type | 2 Cylinder, air-cooled, direct injection | |
| Fuel Type | Diesel | |
| Oil Capacity (L) | 2.5 | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank (L) | 30 |
| Noise Level (dBA/7m) | 87 | |
| Dimensions (MM) | 860*650*800 | |
| Weight (KG) | 202 | |

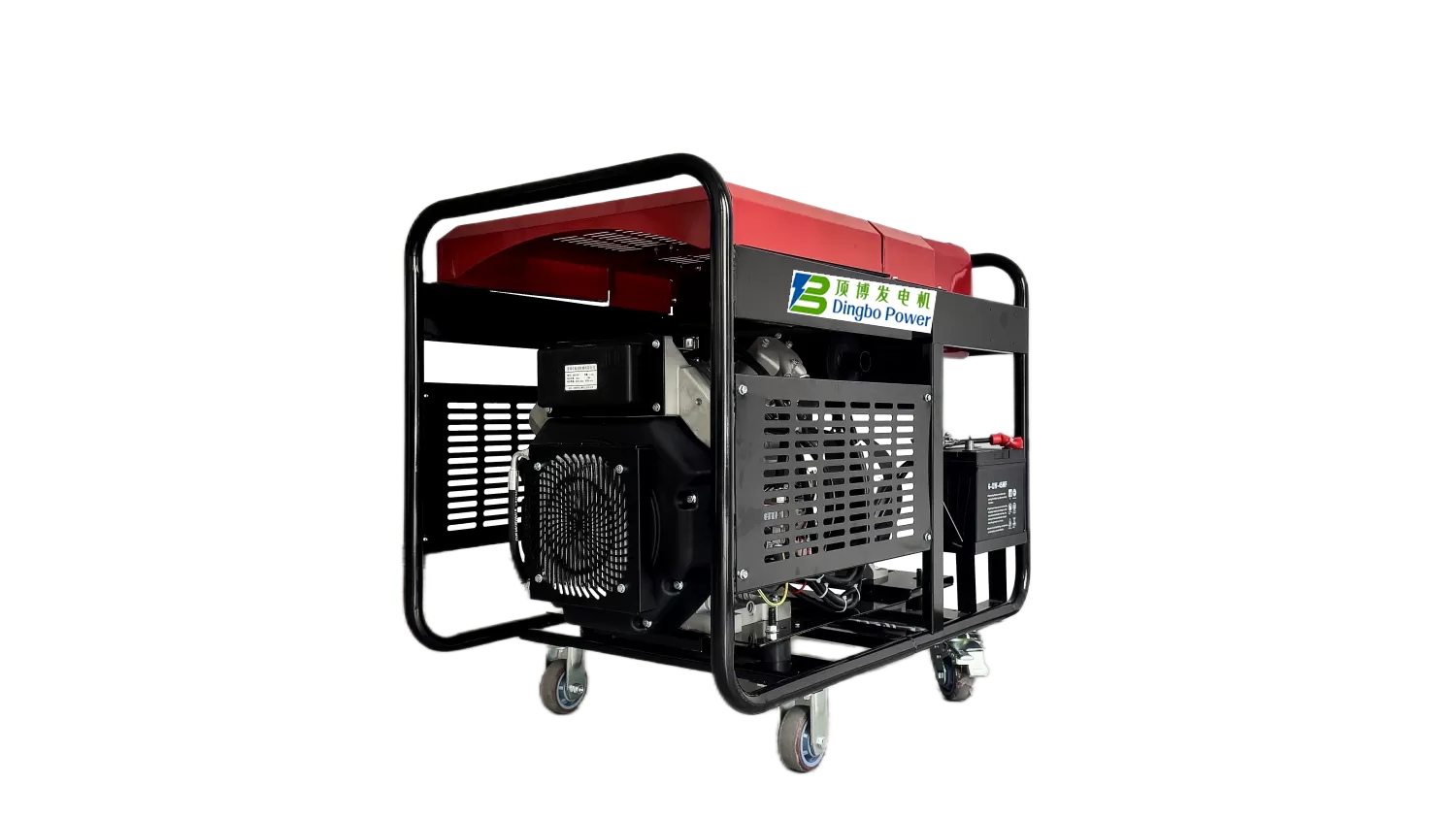

Dingbo Power open type portable single/three phase 12kW (15kVA) diesel generator, twin-cylinder air-cooled 4-stroke diesel engine with electric start and 30L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.
