Model No.: DB-WP-150
Engine Power: 15KW
Maximum Revolution: 3600RPM
Maximum Head Lift: 25m
Maximum Flow Rate: 200m³/h
Maximum Suction Lift: 5m
Fuel Tank capacity: 30L
For more types, please contact us.
Features:
1. The intelligent single-stage centrifugal self-priming pump is precision-engineered from high-strength, corrosion-resistant materials, delivering high head, large flow, and reliable operation.
2. Extra-Large inlet/outlet diameters enable rapid suction and maximum flow capacity.
3. A high-capacity fuel tank ensures prolonged runtime and enhanced operational efficiency.
4. Brake-equipped universal wheels provide effortless mobility and time-saving portability.
Product's Technical Parameters：
| Item | Water Pump with Gasoline Engine |
| Model No. | DB-WP-150 |
| Pump Type | Single-stage centrifugal drainage pump and four-stroke two-cylinder air-cooled engine |
| Engine Model No. | DH740 |
| Engine Power | 15KW |
| Maximum Revolution | 3600RPM |
| Controller | 2.8-inch/ 240*128 LCD HD-display screen |
| Maximum Head Lift | 25m |
| Maximum Flow Rate | 200m³/h |
| Maximum Suction Lift | 5m |
| Self-Priming Time | 180S |
| Outlet Diameter | 150mm |
| Inlet Diameter | 150mm |
| Display System | LCD HD-display screen |
| Fuel Tank capacity | 30L |
| Engine Type | 4-stroke, air-cooled |
| Starting Battery | Maintenance-free Battery |
| Water Pump Configuration: | 1 Pump Unit, 1 Bottle of Engine Oil, 1 Tool Set, 1 Quality Certificate, 1 Packing Case |
| Dimensions(L*W*H) | 892×732×892mm |
| Weight | 150kg |

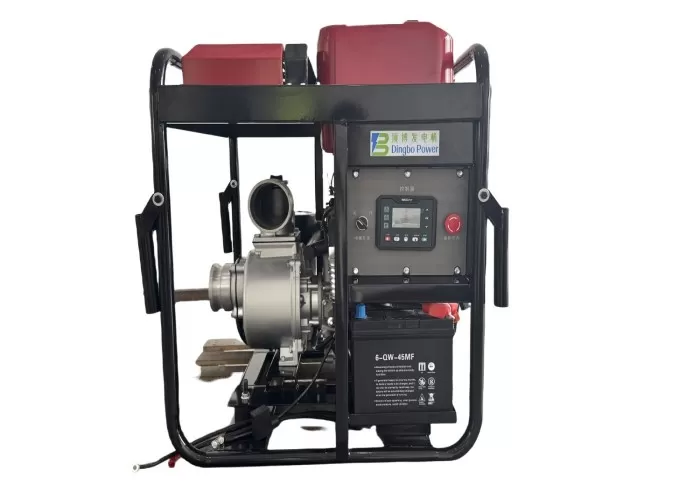

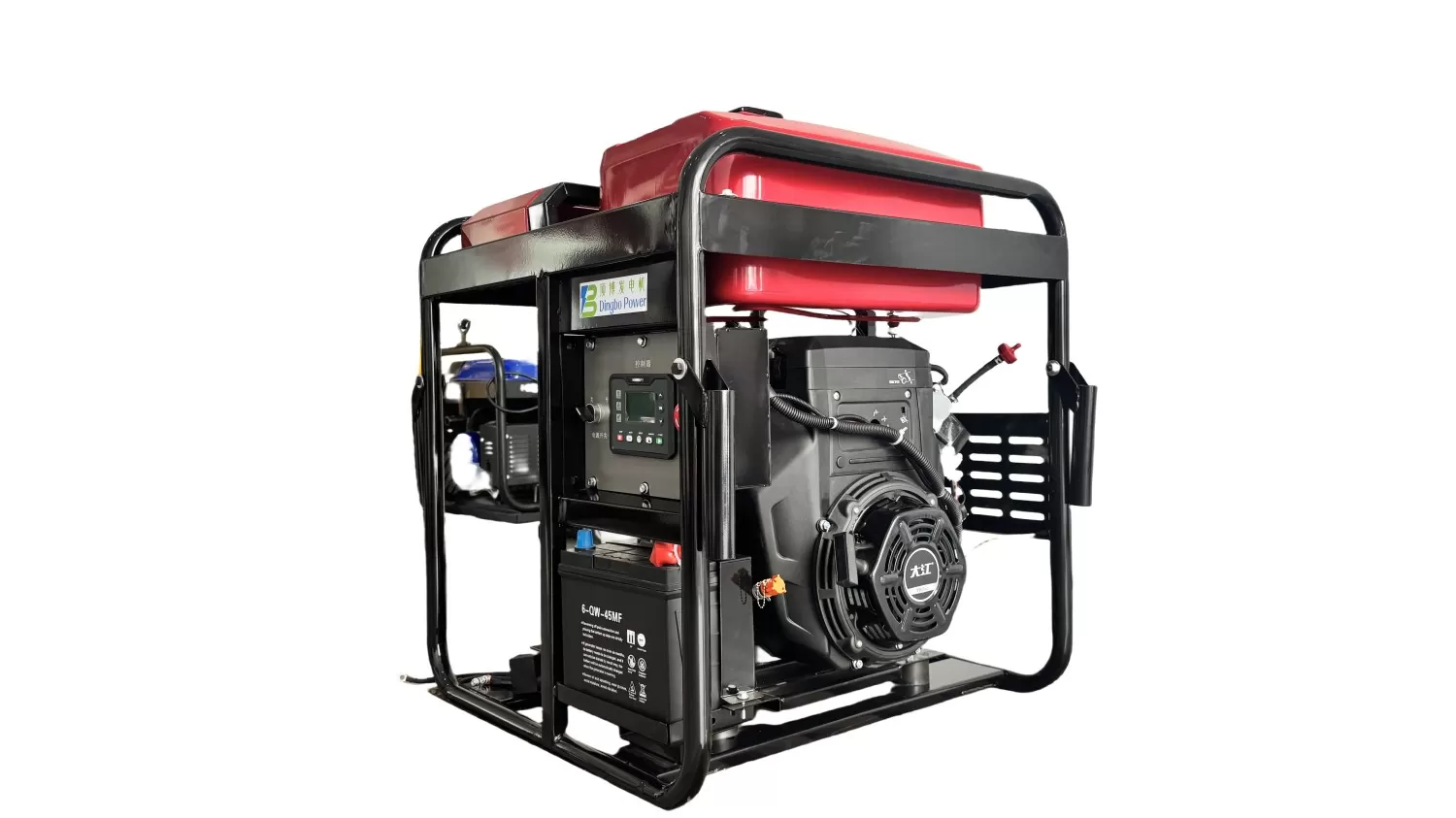

Dingbo Power DB-WP-150 6-Inch gasoline engine water pump is with a flow capacity up to 200m³/h and a pumping head up to 25m, making it ideal for jobsites or farm/agricultural applications.
