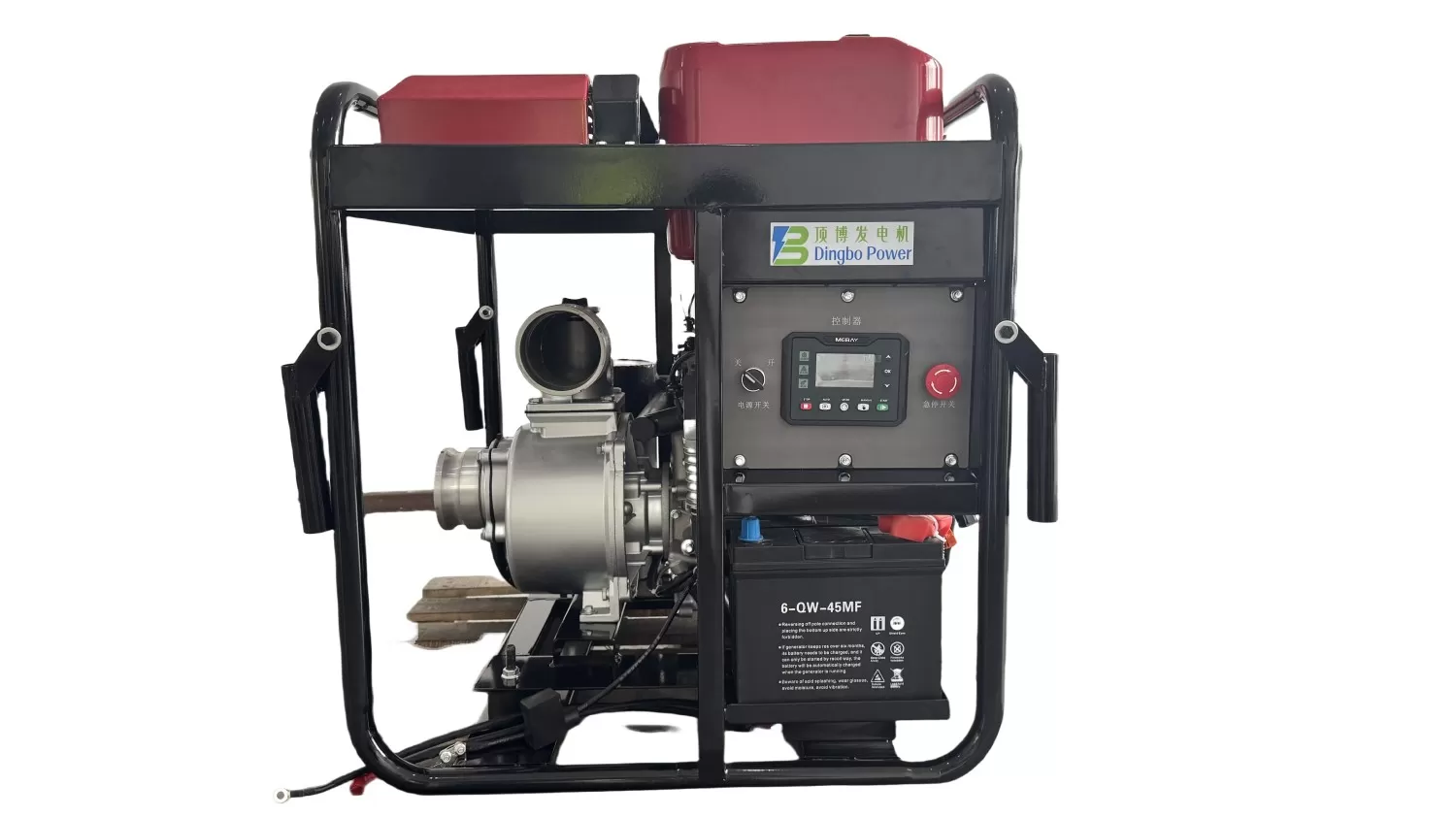

4-Inch Portable Air-Cooled Gasoline Powered Water Pump

4-Inch Portable Air-Cooled Gasoline Powered Water Pump

Features:


1. The intelligent single-stage centrifugal self-priming pump is manufactured from high-strength, corrosion-resistant materials. This pump offers high head, large flow, and reliable operation.

2. Extra-large diameter inlet/outlet ports ensure rapid suction and high flow.

3. A high-capacity fuel tank provides prolonged runtime and increased efficiency.

4. Brake-equipped universal wheels enable easy, effort-saving mobility.



Product's Technical Parameters:


ItemWater Pump with Gasoline Engine
Model No.DB-WP-100
Pump TypeSingle-stage centrifugal drainage pump and four-stroke two-cylinder air-cooled engine
Engine Model No.DH740
Engine Power15KW
Maximum Revolution3600RPM
Controller 2.8-inch/ 240*128  LCD HD-display screen
Maximum Head Lift25m
Maximum Flow Rate150m³/h
Maximum Suction Lift 7m
Self-Priming Time180S
Outlet Diameter100mm
Inlet Diameter100mm
Display SystemLCD HD-display screen
Fuel Tank capacity30L
Engine Type4-stroke, air-cooled
Starting BatteryMaintenance-free Battery
Water Pump Configuration:1 Pump Unit, 1 Bottle of Engine Oil, 1 Tool Set, 1 Quality Certificate, 1 Packing Case
Dimensions(L*W*H)892×732×892mm
Weight145kg


Dingbo Power DB-WP-100 4-Inch gasoline engine water pump is with a flow capacity up to 150m³/h and a pumping head up to 25m, making it ideal for jobsites or farm/agricultural applications.
