Shangchai E Series Diesel Engine – Powerful Engine

Oct. 18, 2019

Shangchai Diesel Engine Co.,Ltd (SDEC), with SAIC Motor Corporation Limited as its main shareholder, is a large state-owned high tech enterprise engaged in research and development and manufacture of engines, engine parts and generator sets, processing a state-level technical center, a postdoctoral working station, world-level automatic production lines and passage cars standards quality assurance system.


With 70 years production experience, SDEC’s products haven been used all over the world. Nowadays, SDEC has seven series of high-quality diesel and natural gas engines such as R, H, D, C, E, G and W Series. These series engines with power output of 50 to 1,600KW are mainly applied to trucks, buses, construction machinery, generator sets, marine application and agricultural equipment.



We have introduced SDEC H and D Series Diesel Engine in previous articles. In this article, you will learn another series engine – E Series diesel engine.



Brief introduction of Shangchai E Series Diesel Engine (Power output: 307KW -380KW)



The E series diesel engine is jointly designed by SDEC and AVL (Austrial). The E series is a brand new engine platform developed by referring to the current internationally advanced engine application technology and made according to the SAIC MOTOR manufacturing standards with world-class equipment. Its fuel system equipped with an electronically-controlled high-pressure common rail or a mechanical fuel injection pump with electronic governor is optional.

Besides, the E series is safe, reliable and powerful. Its economy is superior to that of the similar products with the same power. The E series is applicable to medium-and high-end common-used generator sets.

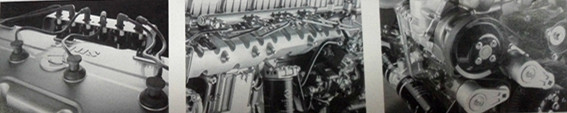

SDEC E series diesel engine.jpg



Product Features


1) Four valves per cylinder, overhead camshaft, high-strength cylinder block with bedplate and rear gear train provide a maximum allowable explosion pressure of 190 bar, which contains advanced technology.


2) Automatic production lines of MAG of the world-class brand and MES system control, as well as Volkswagen’s engine manufacturing quality control system provide high product quality and good consistency.


3) Service life (B10) of engine mechanical part exceeds 15,000 working hours. The engine reliability and durability on test bench has accumulated over 20,000 hours, and engine validation by customer over 10,000 hours, demonstrating high reliability.


4) Single overhead camshaft combined with roller rocker arm doubles the interval for valve clearance adjustment, and fractured connecting-rod, multiple oil filtration results in easy maintenance.


5) The engine can operate properly at an ambient temperature of 40. Without an air intake heating aid, its cold start temperature is as low as -15, providing strong environmental adaptability.


Technical Parameters


STAGE EMISSION


Model


SE12E460D2

Type


In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, Four Valve

Aspiration


Turbo & Intercooler

Number of Cylinders×bore×stroke

mm

6×128×153

Cylinder Liner Type


Wet Liner

Compression Ratio


17:1

Total Displacement

L

11.8

Speed Governing Rate

%

Electronic control ≤ 5

Rated Power

KW

307

Rated Speed

rpm

1500

Standby Power

KW

338

Min Fuel Consumption

g/kW·h

192

Exhaust Smoke

FSN

1.0

Oil Capacity

L

3341

Cooling System Capacity

L

23.2

Oil Consumption

g/kW·h

0.3

Emission Standards


STAGE

Noise

DB(A)

105

Net Weight

KG

1164

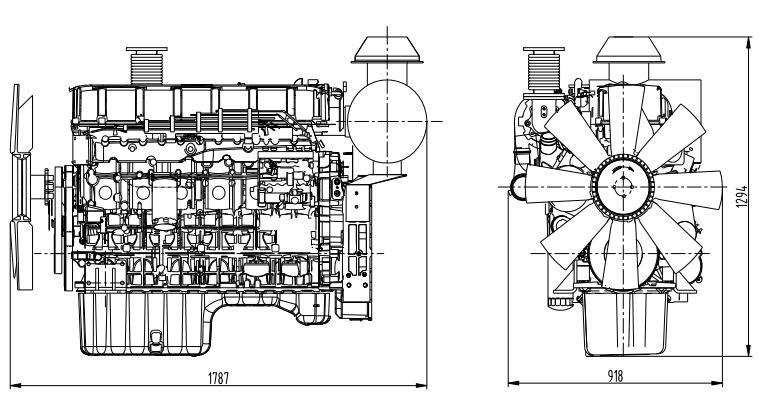

Dimension (L×W×H)

mm

1787×918×1294

Inlet Size

mm

60

Outlet Size

mm

65

Flywheel and Flywheel Housing


SAE1#&14#



STAGE  EMISSION



Model


6ETAA11.8-G32

6ETAA11.8-G33

6ETAA11.8-G31

 Type


In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, Four Valve

Aspiration


Turbo & Intercooler

Number of Cylinders×bore×stroke

mm

6×128×153

Cylinder Liner Type


Wet Liner

Compression Ratio


17:1

Total Displacement

L

11.8

Speed Governing Rate

%

Electronic control

Rated Power

KW

280/307

307/340

340/340

Rated Speed

rpm

1500/1800

Standby Power

KW

308/338

338/380

380/380

Min Fuel Consumption

g/kW·h

190

Exhaust Smoke

FSN

1.0

Oil Capacity

L

3341

Cooling System Capacity

L

23.2

Oil Consumption

g/kW·h

0.3

Emission Standards


STAGE

Noise

DB(A)

105

Net Weight

KG

1165

Dimension (L×W×H)

mm

1787×918×1294

Inlet Size

mm

60

Outlet Size

mm

65

Flywheel and Flywheel Housing


SAE1#&14#



SDEC E series diesel engine.jpg

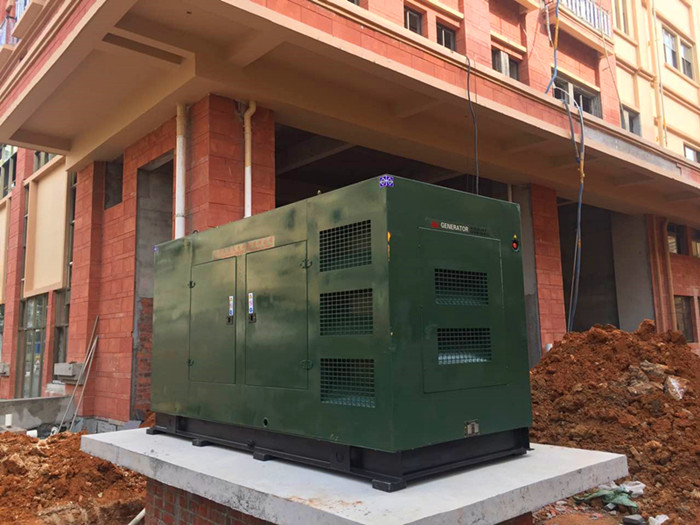

After knowing about Shangchai powerful diesel engine, are you interested in Shangchai soundproof diesel generator?


soundproof diesel generator.jpg
